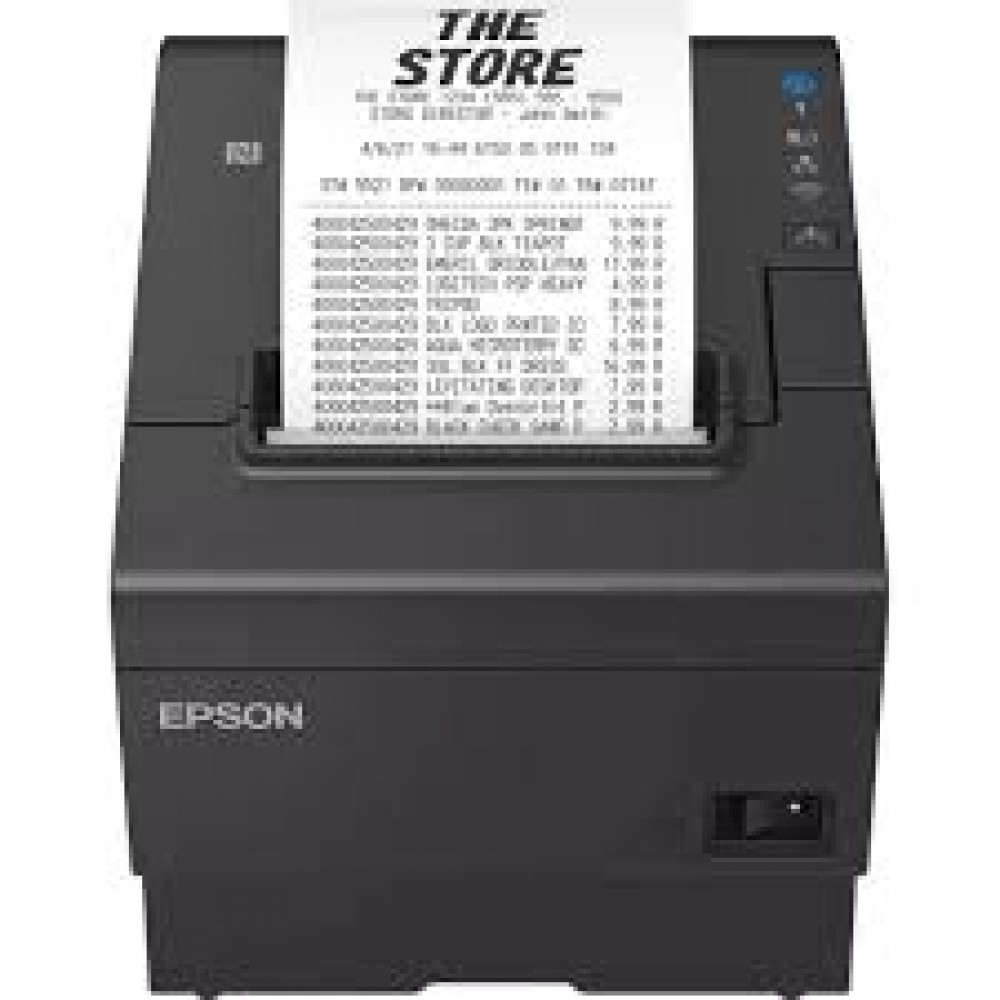

The fastest POS receipt printer with advanced connectivity and online ordering capability.
Ultra fast transaction times - industry-leading print speeds up to 500 mm/sec and high-speed auto cutter
Reliability you can count on - 4-year limited warranty; easy-to-clean, water-resistant enclosure; long printhead and auto cutter life
Connect to multiple devices simultaneously - using multiple interfaces, printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers
Multi-interface support - built-in USB and Ethernet, optional serial, powered USB, parallel and wireless connectivity ensure maximum flexibility and futureproofing
Secure wireless connection - supports the latest Wi-Fi security standard (WPA3)
Online ordering ready - Server Direct Print technology allows the printer to retrieve orders from a web server and print a receipt without requiring POS software integration
POS peripheral support - supports POS peripherals including barcode scanners, customer displays, and more
Easy setup and configuration - streamline the setup and replacement processes using Epson TM Utility; vertical mounting kit provides flexible configuration options
Easy to understand - status LEDs and network diagnostic sheet improve on-site network troubleshooting
Advanced paper-saving functions - top-margin and character-height reduction features help reduce paper usage by up to 49 percent
Specifications
Print
Print Method
Thermal line printing
Print Speed
500 mm/sec (19.7"/sec) max. for graphics and text
Print Resolution
180 dpi
Print Fonts
Fonts
Font A (default): 12 x 24 (including 2-dot horizontal spacing); 10 x 24 (including 1-dot horizontal spacing)
Font B: 9 x 17 (including 2-dot horizontal spacing)
Kanji Font A: 24 x 24 (including 0-dot horizontal spacing); 20 x 24 (including 2-dot horizontal spacing) Kanji Font B: 16 x 16 (including 0-dot horizontal spacing)
Column Capacity
Font A/B (ANK): 80mm mode 42/48/56 columns 58mm mode: 30/36/40 columns
Kanji Font A/B: 80mm mode: 21/24/32 columns 58mm mode: 15/18/22 columns
Character Set
95 Alphanumeric, 18 International, 128 x 43 Graphic, Japanese (6,879 characters of JIS X0208-1990, 845 special characters), Simplified Chinese (28,553 characters of GB18030-2000), Traditional Chinese (13,502 characters of Big5), Korean (8,224 characters of KSC5601)
Barcode
UPC-A, UPC-E, JAN8/EAN8, JAN13/EAN13, Code39, Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar, Code 128 Auto
Two-dimensional Symbol Printing
PDF417, QR Code, MaxiCode, DataMatrix, Aztec Code, Two-dimensional GS1 DataBar, Composite Symbology
Media Handling
Media Dimensions
80 mm: 79.5 0.5 x 83 mm
3.13" 0.02" (width) x 3.27" (roll diameter)
58 mm: 57.5 0.5 x 83 mm
2.26" 0.02" (width) x 3.27" (roll diameter)
Thickness
48 - 80 m
Type
Thermal roll paper
Paper Feed Method
Friction feed
Paper Back Feed
Yes
Paper Loading
Drop-in
Roll Diameter (Max.)
3.27"/83 mm
Core Diameter (Min.)
0.71"/18 mm
Paper Guide
Yes
Auto Cutter
Yes
Near-end Sensor
Yes
