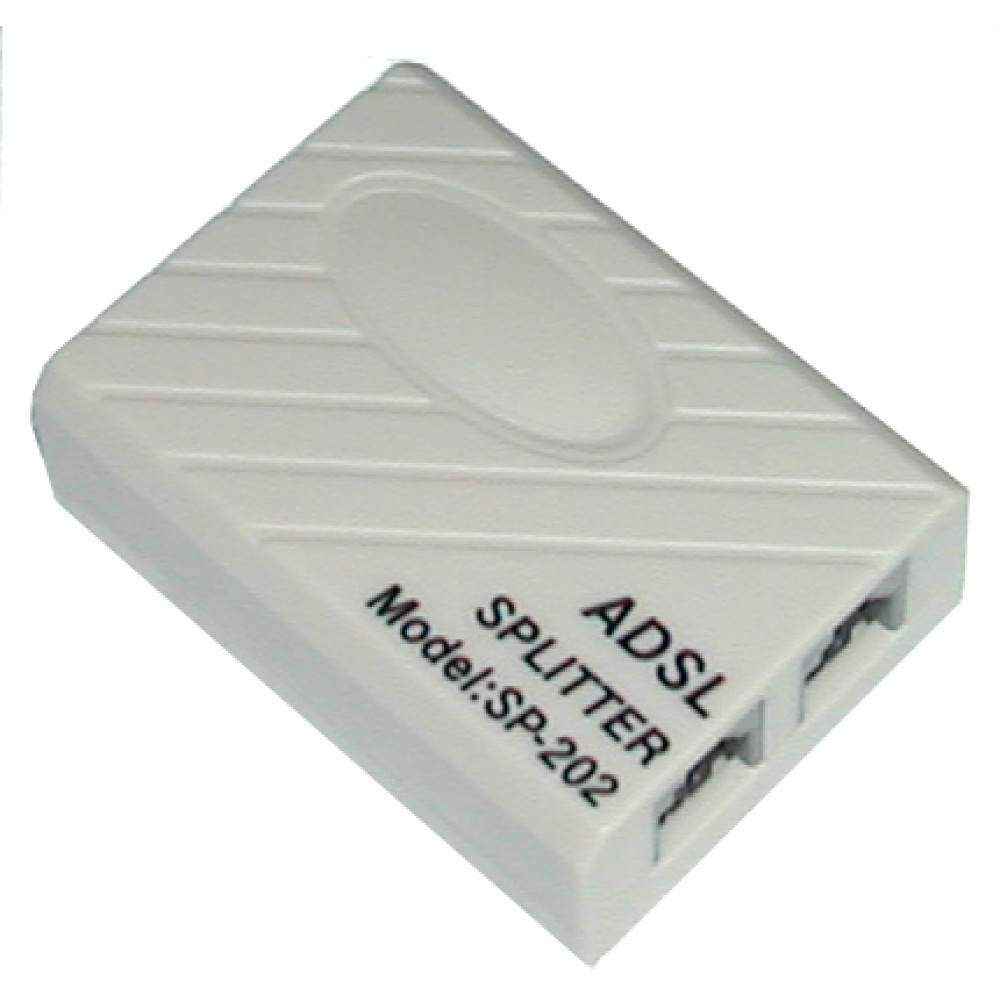

ADSL SPLITTER


  • BrandsTrend Tech
  • Product Code: ADSLS
  • Availability: In Stock

  • R25.00



ADSL SPLITTER

Key FeaturesPOTS -3dB, cut off frequency: 7, 8KHz
POTS pass ripple loss: (20Hz to 4KHz)+/-0.5dB
Attenuation: 30-300KHz>-65dB, 30-1104KHz>-55dB
DC Resistance each line: 12.5 Ohms, Max
Insertion loss (200Hz to 4KHz): -0.5dB Max
Return loss: 300-500Hz>-16dB, 500-2000Hz>-18dB, 2000-2400Hz>-18dB
Longitudinal balance(CMRR): 200Hz-1KHz): -58dB Min. 3KHz: -53dB Min. POTS loop current: 100mA DC
Envelope delay distortion (0.2 to 4.0KHz): 100usec. Max.
Impedance (300Hz to 3.4KHz): 600 Ohms
Hi-Pot test: Tip to Ring, DC 250V/1mA 2 Sec.
